How to Recreate the 303 Acid Sound (The TB-303 Squelch)

The acid sound is one of the strangest success stories in electronic music: a machine built to fake a bass guitar, declared a failure, dumped into second-hand bins, and then rescued by a handful of Chicago producers who used it completely wrong. What they discovered was not a patch or a preset. It was a way of playing a resonant filter while a pattern loops — a squelching, liquid, almost vocal bassline that became the foundation of acid house and never left. This guide is about rebuilding that sound honestly: what the Roland TB-303 actually is, which parts of it carry the character, and how to get all of it out of a stock synth you already own. Like the supersaw and the 80s gated-reverb snare, the 303 is far more myth than mystery once you know where to look.

It’s a performance, not a preset

The single most useful thing to understand about the 303 is that there is almost nothing to it as a synthesizer. One oscillator, one filter, one short envelope. If you drew its synthesis engine as a block diagram it would embarrass a beginner’s modular patch. Producers who go hunting for a magic 303 preset are looking in the wrong place, because the sound does not live in the patch — it lives in what you do to the patch while a pattern repeats.

This is the opposite of a sound like the supersaw, which is fully baked into a static waveform. The 303 is closer to a saxophone than a sample: the instrument is simple, and the expression comes from the player. When Chicago producers “discovered acid,” they did not find a hidden setting. They found a way of behaving — setting up a repeating bassline, then riding the filter cutoff and resonance with their hands while the loop ran, letting accented notes jump and slid notes bleed into each other. Get that reframe right and everything else becomes obvious. Get it wrong and you will spend hours tweaking oscillators that were never the point.

So this guide is structured around that truth. We will build the trivial synth first, quickly, and then spend most of our time on the two things that actually make it acid: the resonant filter and the way the sequencer articulates it. If you have ever recreated a signature sound with us before — the way the gated snare turned out to be about compression and a gate rather than a reverb preset — you already know the pattern. The famous part is rarely the part people obsess over.

From failed bass machine to accidental genre

The 303 was never meant to make this sound. Tadao Kikumoto designed it to be a portable bass accompaniment — a little silver box a guitarist could program to walk a bassline while they practised or played a bar gig, paired with the TR-606 drum machine. It arrived in 1981 in a satchel with a shoulder strap, ran on batteries, and cost around $400. The problem was that it sounded nothing like a bass guitar. Its sequencer was cryptic to program, especially without an English-language manual, and its tone was a rubbery squelch that no bassist wanted. It sold poorly, Roland made only about 10,000 of them, and by 1984 it was discontinued and dumped into second-hand bins.

That failure is the whole reason the sound exists. Because nobody wanted them, 303s were cheap, and cheap gear is what bedroom producers can afford. In Chicago in the mid-1980s, DJ Pierre and his group Phuture got hold of one and, not knowing or caring what it was “supposed” to do, twisted its filter knobs while a pattern looped — and out came a squelching, acidic, hypnotic bassline unlike anything in dance music. Their track built from those experiments, released as “Acid Trax” on Trax Records in 1987, gave the emerging sound its name. From Chicago it spread to the UK rave scene, then to techno in Detroit and hard trance in Europe, and the machine that failed as a bass guitar became the defining voice of an entire branch of electronic music. It is worth holding onto that story while you recreate the sound, because it is a reminder that the 303 is defined by misuse: there is no “correct” acid patch, only a resonant filter and the nerve to play it live.

The anatomy of a 303, one part at a time

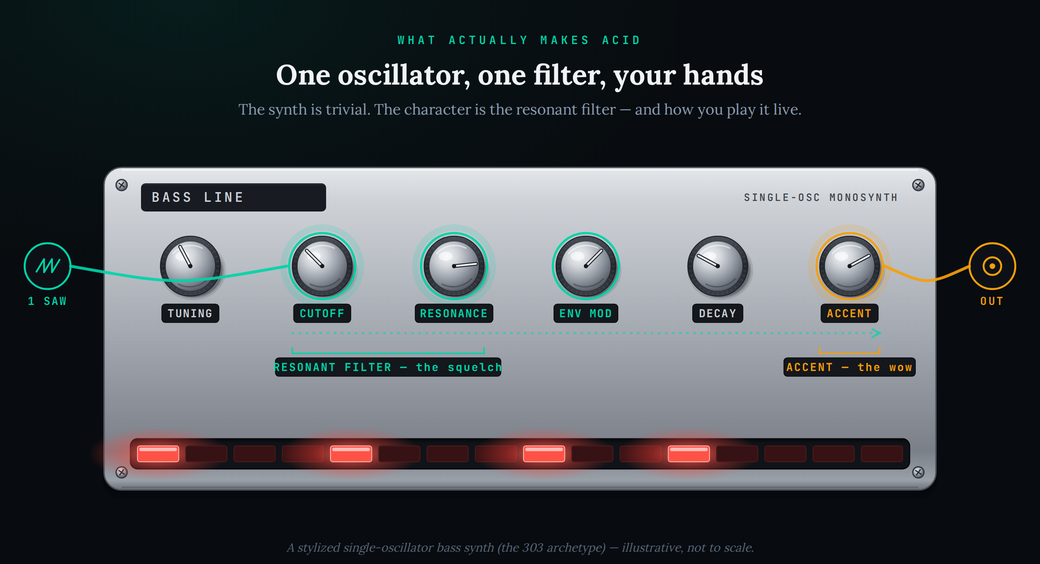

The whole synth, and where the sound lives. One oscillator in, a resonant filter and an accent circuit in the middle, out the other side — the character is the teal-ringed filter and the amber-ringed accent, played live. Stylized, illustrative.

Start with the oscillator. The 303 has exactly one, and it produces either a sawtooth or a square wave — the square being shaped from the saw by a small circuit, which is why it has its own slightly hollow character rather than a textbook square shape. There is no second oscillator, no unison, no detune stack. This matters when you recreate it: the instinct from modern synthesis is to thicken everything with layers, and every layer you add moves you away from the 303, not toward it. One voice is correct. The thickness comes later, from distortion, not from stacking.

It is worth dwelling on the square wave for a moment, because it is a small thing that matters. On most synths a square wave is a clean, symmetrical shape; on the 303 the square is derived from the sawtooth through a simple shaping circuit, which gives it a slightly hollow, reedy quality that is not quite a textbook square. In practice the saw is the more common choice for acid — it is brighter and has more harmonic content for the resonant filter to bite into — but the square is useful for rounder, woodier basslines, and switching between the two is one of the few timbral decisions the instrument offers. Everything else about the tone is downstream of the filter and what you do to it, which is exactly why so little of your effort should go into the oscillator and so much into the filter and the pattern.

That single oscillator feeds a low-pass filter, and this is where the whole personality lives. It is a diode-ladder design — a ladder of transistors wired to behave like diodes — and it is famous for being, in the words of the people who have measured it, a slightly “broken” filter. Its rolloff is not the clean, symmetric slope of a textbook four-pole filter, and that imperfection is exactly why a generic modern filter set to the same numbers sounds too polite. The 303 is subtractive synthesis at its most stripped-down: take a harmonically rich wave, then carve it with a filter that has a strong personality of its own.

Wrapped around that filter is a single-decay envelope. There is no elaborate ADSR here: the note attacks fast and decays, and a decay knob sets how quickly the filter closes again. Short decay gives you the tight, plucky, staccato notes that acid basslines are built from; longer decay lets the filter stay open and the note sing. And then, sitting on top of everything, are the two controls that turn a filtered saw into acid: accent and slide, both of which are programmed per step on the sequencer rather than played on a keyboard. Those two get their own sections below, because they are the sound.

The squelch is a resonance peak, moving

When people imitate an acid line with their mouth, they make a “wow-wow-wow” sound. That is a surprisingly accurate description of the physics. Turn a low-pass filter’s resonance up and it stops simply cutting high frequencies and instead builds a loud peak right at the cutoff point — a narrow band of frequencies that gets emphasised, almost whistled. Now sweep the cutoff up and down while a note holds, and that peak slides across the harmonic spectrum. That sliding peak is the squelch. Everything else about the 303 is in service of making that peak vivid and easy to move.

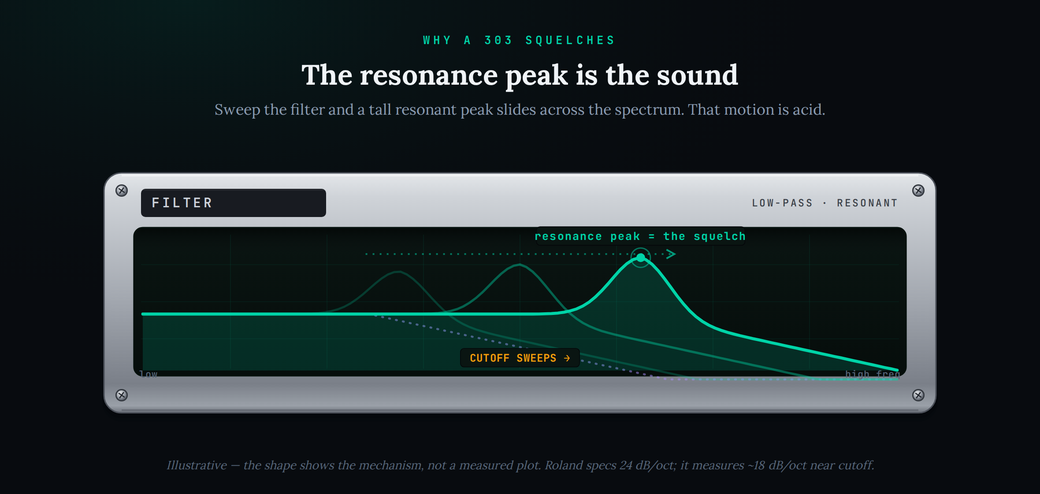

Why a 303 squelches. The resonant peak (teal) slides across the spectrum as you sweep the cutoff — that moving peak is the acid sound. A clean filter (dashed) has no peak. Illustrative, not a measured plot.

The diagram above is the entire secret drawn as a picture. The purple dashed line is a clean, modern low-pass filter: it lets the lows through and rolls off the highs smoothly, with no drama. The teal curve is the 303: same basic job, but with a tall, narrow resonance peak riding on top of the rolloff. When you sweep the filter, that teal peak marches left and right across the frequencies, and your ear tracks it like a voice. This is why a “303 patch” with the resonance turned down sounds dead — you have removed the one feature that makes it acid. Push the resonance until you can clearly hear the filter ringing, and set a healthy amount of envelope-to-cutoff so the filter opens with every note. Now you have movement to play with.

It helps to understand why this particular filter rings the way it does. A diode ladder is a specific circuit topology, and the 303’s version is built from transistors wired to act as diodes, with one stage deliberately different from the others. That asymmetry is what engineers mean when they call it a “broken” four-pole filter: it does not roll off in the clean, predictable way a textbook design does, and its resonance interacts with the signal in a slightly unstable, vocal manner rather than settling into a smooth whistle. It cannot quite self-oscillate, which keeps the resonance musical rather than piercing. When you set up your recreation, you are trying to reproduce that behaviour — a resonant peak that feels alive and a little unruly — far more than any particular decibel figure. If your synth offers a filter labelled “diode,” “ladder,” or “303,” start there; if not, any resonant low-pass filter with generous resonance and a touch of drive will carry the idea convincingly.

You do not need to agonise over whether your filter is 18 or 24 dB per octave. As the sourcing box explains, the real 303 is genuinely both depending on where you measure, and no producer has ever identified an acid record by its filter slope. What you want is a resonant low-pass filter that can ring, with enough envelope modulation to make the peak move. A steeper filter sounds a touch more aggressive; a shallower one a touch rounder. Either can be acid. Chase the movement, not the number.

Accent and slide: the two controls that are the sound

Here is the part every recipe skips. The 303 has two performance features programmed onto individual steps of its sequencer, and together they carry almost all of the groove. The first is accent. On the hardware it is a circuit Roland literally called the “gimmick circuit,” and on an accented step it does three things at once: it makes the note louder, it opens the filter cutoff and resonance further, and it shortens the envelope so the note snaps. Crucially, the accent circuit does not fully reset between steps — so if you place two or three accents in a row, each one climbs higher than the last, producing that rising, wailing, almost distressed emphasis that defines the wildest acid lines.

This cascading behaviour is the reason acid lines feel like they breathe and strain rather than simply repeat. On the hardware, the accent drives a small sweep circuit whose charge does not fully drain before the next step, so a run of accented notes builds a staircase of ever-brighter, ever-louder peaks — the sonic equivalent of a voice getting more agitated. You do not need to replicate the exact circuit to get the effect; you need to let your accent source (velocity or an accent lane) push both loudness and cutoff, and to place accents in deliberate clusters rather than sprinkling them evenly. Two or three accents in a row will do more for the character than a dozen scattered across the bar. Where you put the accents is, quite literally, where the emotion of an acid line comes from.

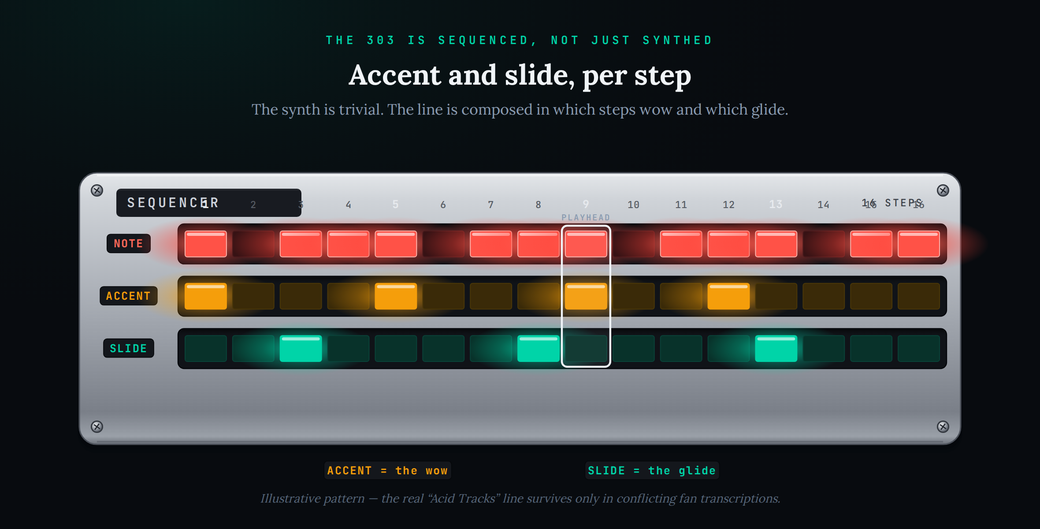

An acid line is mostly accent and slide. The notes barely change — which steps get an accent (amber) and which glide (teal) is the whole composition. Illustrative reconstruction.

The second feature is slide (also called glide or portamento). A slid note glides smoothly up or down into the next note instead of restarting cleanly, using a fixed glide time you cannot adjust on the hardware. Programmed onto a couple of well-chosen steps, slide gives acid lines their fluid, rubbery, vocal phrasing — the way a line seems to bend and lean rather than march. In the diagram, the pattern is drawn as three lanes: which steps play a note, which of those get an accent, and which slide into the next. That is genuinely all the information a 303 pattern contains, and it is why two producers with the same synth settings can make completely different lines. The notes are a small part; the accent and slide choices are the composition.

When you recreate this in a modern synth, you reproduce accent with velocity or a dedicated modulation lane: route velocity (or an accent track) to both the amplitude and the filter cutoff, so louder notes are also brighter. Reproduce slide by toggling a short portamento time on the specific notes you want to glide — most synths let you set glide to “legato” so it only slides between overlapping notes, which maps neatly onto the 303’s behaviour. Spend your time here, not on the oscillator. A dull pattern with a perfect filter is still dull; a great pattern with accents and slides in the right places is acid even on a cheap synth.

The dirt: the classic sound is overdriven

If you build a clean 303 and it still sounds thinner and politer than the records, the missing ingredient is almost always distortion. The classic acid and acid-techno sound was rarely the 303 on its own — producers ran it through guitar overdrive and fuzz pedals, or simply pushed the gain of a mixer channel until it clipped. That saturation does two things: it thickens the single oscillator into something that feels much bigger, and it interacts with the resonant peak to add a snarling, aggressive edge as the filter moves. The dirt is not an afterthought; for most acid records it is half the sound.

When recreating it, reach for a distortion, saturation, or overdrive plugin after the synth and be generous. Start with a mild drive to fatten the tone, then push harder for the more extreme acid-techno flavours. Because distortion adds harmonics and low-mid weight, keep an eye on the balance the same way you would when you EQ a bassline — a little high-pass after the distortion tames mud, and gentle EQ keeps the resonant peak from getting harsh. The interplay of a moving resonant filter and saturation is what gives acid its living, snarling quality, so treat the distortion as an instrument you play alongside the cutoff, not a static effect you set and forget.

Different distortion flavours give you different eras of the sound. A soft tube or tape saturation fattens the line while keeping it musical, which suits house and the more melodic end of acid. A harder clipping or fuzz — the kind you get from a guitar pedal or an overdriven console channel — produces the aggressive, screaming acid-techno tone, especially as the resonant peak climbs into the distortion. The famous Devil Fish modification of the real 303, developed by Robin Whittle and used by artists like Aphex Twin and Hardfloor, essentially extended the machine’s ability to be pushed this hard. You do not need any of that hardware history to benefit from the principle: pick a distortion that matches the intensity you want, put it after the synth, and let the moving filter feed it. The dirt and the filter movement are a duet, and the interaction between them is where the most exciting acid textures live.

Recreate it: stock synth first, then the shortcuts

You do not need any special software to build a convincing 303. Any synth with a resonant low-pass filter, a way to glide between notes, and a way to make certain notes louder and brighter will do it. The route diagram below lays out the honest options in order of cost, and the top row — free and in the box — is genuinely the recommended default, not a consolation prize.

To build one in a stock or free synth, the steps are simple. Load a single sawtooth oscillator. Send it through a low-pass filter and raise the resonance until you can clearly hear it ring, then set envelope-to-cutoff so the filter opens on every note. Use a fast attack and a short decay with no sustain so notes pluck. Program a 16-step pattern, mark a few steps as accented and route your accent source to both volume and cutoff, and set a couple of steps to slide with a short portamento. Add distortion after the synth. Then, while the loop plays, ride the cutoff and resonance with your mouse or a MIDI knob — and record that automation, because the movement is the performance. Vital, which is free, does all of this beautifully; if you own Serum 2 it is equally capable, and the Serum versus Vital comparison covers which suits you. Any of the synths in our best synth plugins roundup will get there.

A few concrete starting settings save time. Tune the oscillator low, in the bass register, and keep it monophonic — acid lines are one note at a time. Set the amplitude envelope to an instant attack and a short decay with no sustain so notes pluck and die. Set the filter envelope similarly short, with the envelope-to-cutoff amount high enough that you can clearly hear the filter open and close on each note; the decay knob on a real 303 is essentially this control, and sweeping it is a big part of live 303 performance. Keep the base cutoff fairly low so there is room for the envelope and accents to push it upward. Resonance should sit high — often three-quarters or more — so the peak sings. From there, everything is performance: program a pattern, add accents and slides, run it through distortion, and play the cutoff and resonance by hand. Save presets if you like, but remember that the preset is only ever the starting canvas; the acid is what you paint on it live.

If you want the hardware feel, the Behringer TD-3 is an all-analog 303 clone at around $150 that reproduces the original circuit and even bakes in a DS-1-style distortion, and it is the cheapest genuine on-ramp to the real thing. For the officially-sanctioned route, Roland’s own Cloud TB-303 is an ACB-modelled software version, available either as a one-time Lifetime Key purchase or through a Roland Cloud subscription. Enthusiasts who like a soldering iron can build the open-source x0xb0x DIY clone. And original hardware units still exist, but they are collector items now and priced accordingly — wonderful to own, unnecessary to sound great. Whichever you pick, the technique is identical; the tool is a matter of budget and feel, as our full Vital review makes clear for the free end of that spectrum.

Beyond acid house: the same move anywhere

The reason it is worth learning the 303 as a technique rather than a preset is that the technique travels. A resonant, envelope-driven, sequenced bassline with accents and slides is not just an acid-house device — it is a building block across a huge swathe of electronic music. In techno, distorted 303 lines drive entire tracks and have become the backbone of the acid-techno revival. In house and tech house, a lighter, cleaner version of the same patch adds rolling movement under a groove. Even trance borrows the resonant, sequenced bassline idea for its rolling low end.

Once you can hear the mechanism — a resonant peak moving under a repeating pattern, emphasised by accents and smeared by slides — you start noticing it everywhere, and you can deploy it deliberately. Want a bassline to feel alive rather than static? Give it envelope-driven filter movement and a couple of accents. Want a lead to snarl? Push the resonance and drive it. The 303 is really a lesson in how much life you can wring out of one oscillator when you treat the filter as a performance instrument. That principle is the actual takeaway, and it is worth more than any single patch.

The pattern-writing craft transfers just as widely. Acid taught producers to think of a bassline as a repeating cell that is varied not by changing the notes but by changing the emphasis — which steps accent, which slide, and how the filter moves over the loop. That is a compositional idea you can apply far beyond a 303 patch: a repetitive riff on any instrument comes alive when you decide, deliberately, where the weight and the glide fall. Many of the classic acid records use startlingly simple note patterns; their magic is entirely in the articulation. Learn to hear and program that articulation and you have gained something more durable than a genre trick — a way of making any looped part feel performed rather than sequenced. The 303 is the most famous teacher of that lesson, but the lesson outlives the instrument.

What you can’t perfectly clone — and why it barely matters

Honesty demands a limit. There are a couple of things about a real TB-303 that a stock synth will not reproduce exactly. The diode-ladder filter’s precise voicing — that slightly imperfect, asymmetric rolloff — is genuinely specific to the circuit, and modern emulations get very close without being bit-identical. The hardware also has small, low-voltage quirks and unit-to-unit variation that mean no two original 303s even sound quite alike. And the exact patterns of the classic records are, as noted, undocumented; you are reconstructing an approximation of something that was itself a happy accident.

But here is why none of that should stop you. The perceptual acid sound — the squelch, the accent wail, the slide, the dirt — is fully reachable in a stock synth, and in a busy mix nobody can tell a well-made emulation from the real thing. More importantly, the part that actually matters is not the filter voicing at all; it is the performance, and that is entirely transferable. If you learn to program accents and slides well and to ride a resonant filter musically, you own the 303 skill for life, on any instrument. The chip is unrepeatable; the musicianship is yours to keep. That is a far better trade than chasing a filter voicing that even a real 303 does not deliver consistently.

Do you need to clear anything?

No. Recreating the 303 sound from scratch — your own synth, your own pattern, your own accents and slides — is entirely your own production, and there is nothing to clear. (The only time rights enter the picture is if you were to sample an actual record that used a 303, which is a completely different task and not what this is.) Build acid lines freely and put them in whatever you like.

Build the skill: 3 drills

Run these in order. The first proves the 303 is a trivially simple synth so you stop hunting for a magic preset; the second trains the performance that actually makes it acid; the third forces you to confront distortion so it becomes automatic.

The mistakes that make it sound wrong

The most common failure is stacking. Producers reach for unison, extra oscillators and detune to make the line “bigger,” and every layer pulls it further from the 303, which is defiantly a one-oscillator instrument. If it sounds thin, the answer is distortion, not more voices. The second failure is a timid filter: resonance turned down and little or no envelope movement, which strips out the squelch entirely and leaves a dull buzz. Turn the resonance up until the filter rings and give it envelope to move.

The third failure is treating it as a static patch — programming the notes, hitting play, and never touching the filter. The whole point is the live movement, so ride the cutoff or automate it. The fourth is neglecting accent and slide, which are not decoration but the composition itself; a pattern with no accents grooves like a metronome. And the last is a clean signal chain with no dirt at all, which is why so many bedroom acid lines sound polite next to the records. When you mix the bassline, keep the 303 mono and centred, tame the low-mid build-up that distortion adds, and let the resonant peak sit forward where the ear can follow it.

Frequently Asked Questions
